12 Channel Digital Thermometer with Datalogger

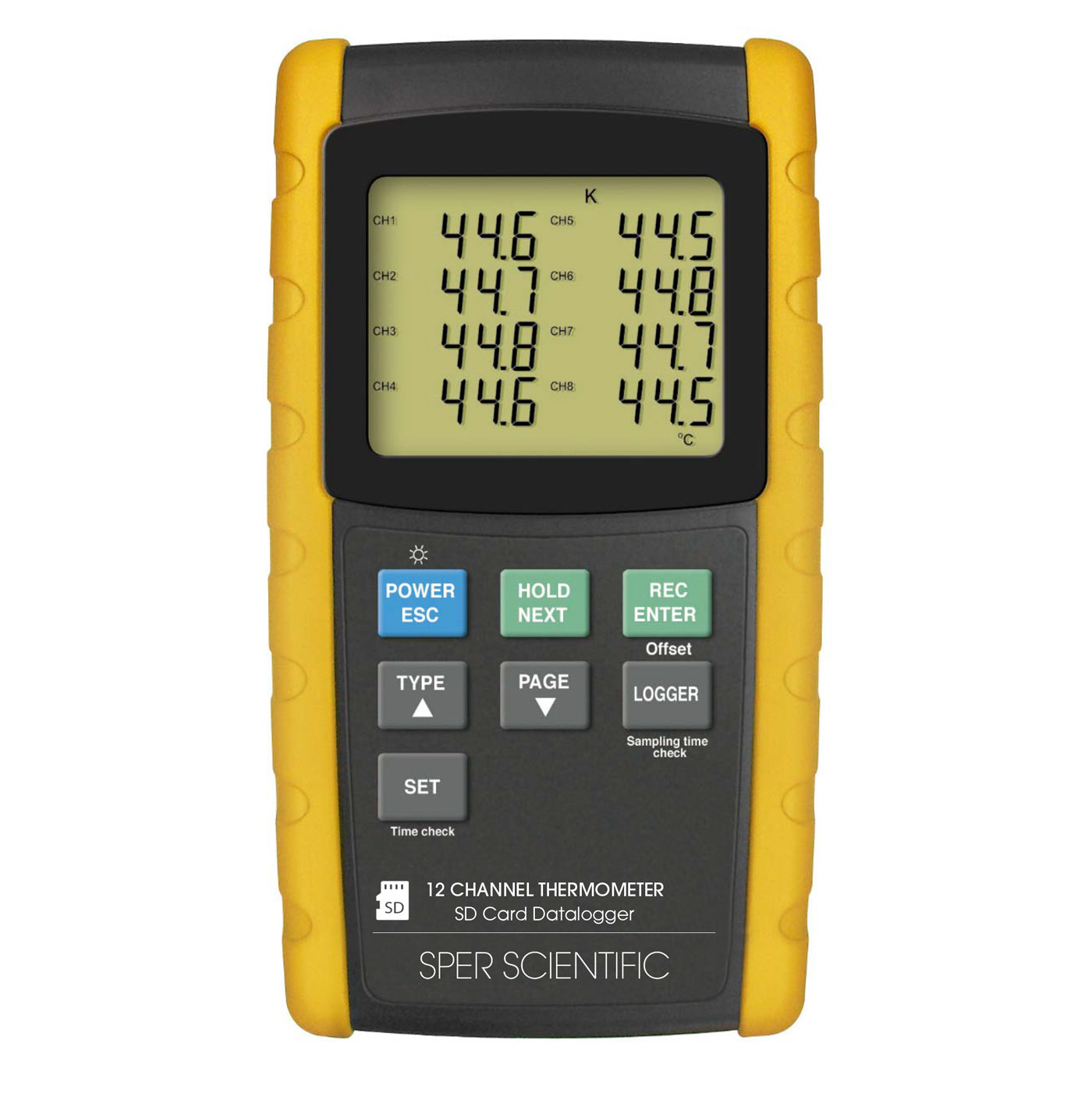

This 12 Channel Digital Thermometer with Datalogger features a large, bright screen and connections for six thermocouple types (J, K, E, T, R, S).

Users can simultaneously display channels 1-8 or 9-12 and store 99 readings manually, or up to 20 million readings with date and time stamp using a 2GB SD card. All data is saved in MS Excel format for further analysis.

The user programmable sampling rate is adjustable from 1 to 3600 seconds with Min/Max, Data Hold, and Auto Power Off. Data can be recorded from all 12 channels simultaneously onto an SD card for later analysis.

  • 12 Channel Type J/K/T/E/R/S Thermocouple Thermometer
  • Saves Readings with Date and Time Stamps in Excel Format
  • Sampling Time Range: 1 to 3600 Seconds
  • Large, Bright Backlit LCD Display
  • Real Time Data Logger w/SD Card
  • SD Card Capacity: 1GB to 16GB
  • Min/Max and Data Hold Functions
  • Optional USB/RS232 Cable

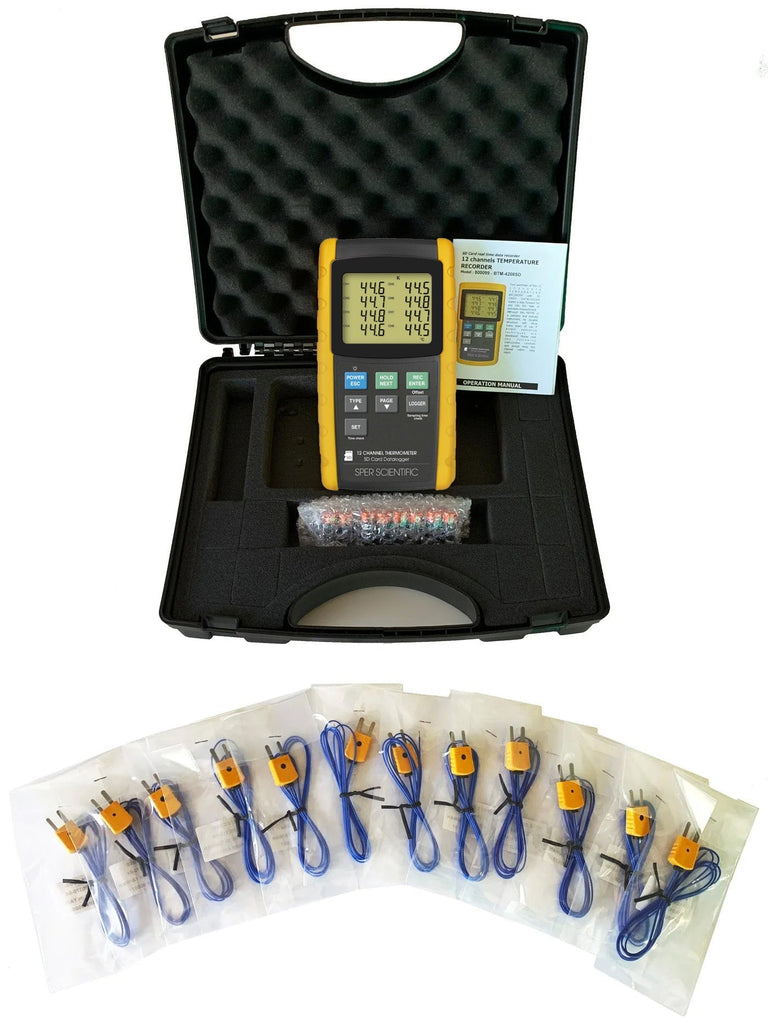

Includes: Hard Carrying Case, (12) Beaded Wire Probes, 2GB SD Card, Batteries and Instructions

Meter Dimensions:
8.86 x 4.92 x 2.52 inches
(225 x 125 x 64 mm)

Weight (Meter Only):
2.09 lbs. (948g) including batteries

General Specifications

Power off

Auto shut off saves battery life or manual off by push button.

Operating Temperature

0 to 50 °C.

Operating Humidity

Less than 85% R.H.

Power Supply

*Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent.

*ADC 9V adapter input. ( AC/DC power adapter is optional ).

Power Current

Normal operation ( w/o SD card save data and LCD Backlight is OFF) :

Approx. DC 7.5 mA.

When SD card save the data but and LCD Backlight is OFF) :

Approx. DC 25 mA.

* AIf LCD backlight on, the power consumption will increase approx. 11 mA.

Weight

Meter Only: 2.09 lbs. (948g) including batteries

Dimensions

8.86 X 4.92 X 2.52 inches
(225 X 125 X 64 mm)

Accessories Included

Hard Carrying Case, (12) Beaded Wire Probes, 2GB SD Card, Batteries and Instructions

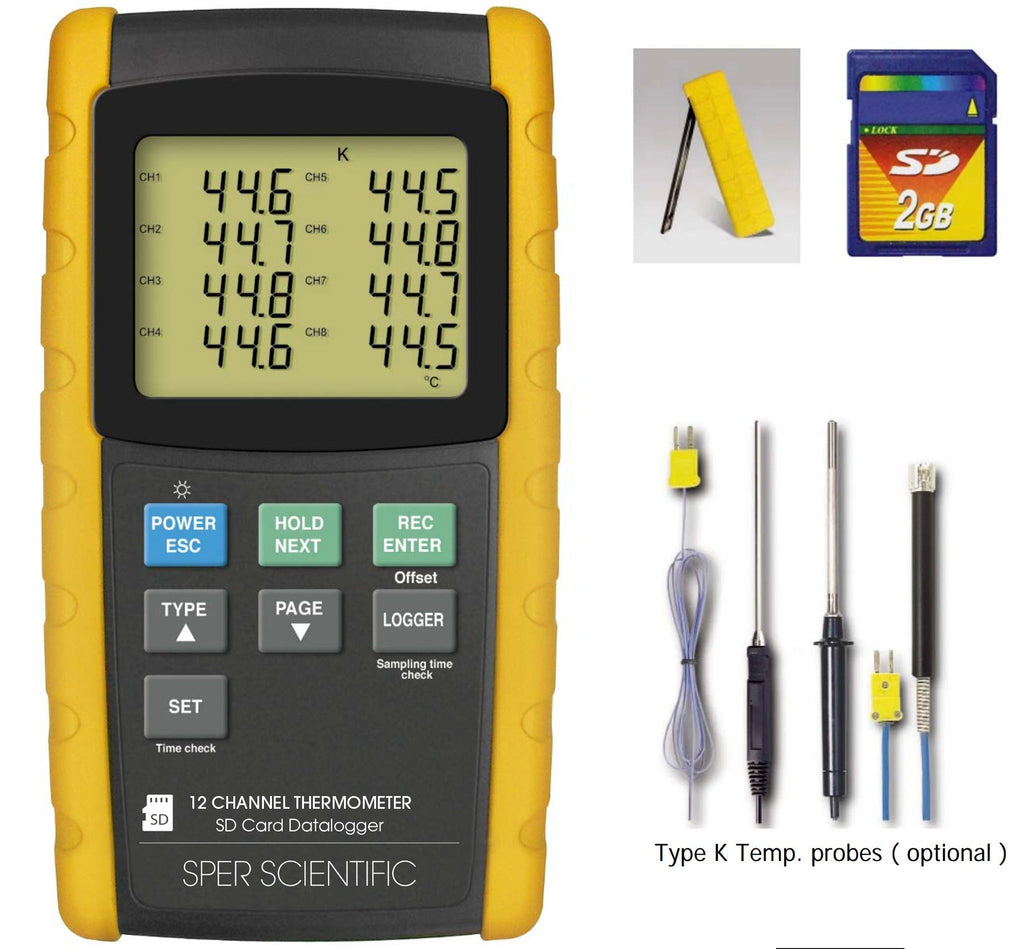

  • Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04

  • USB cable, USB-01

  • RS232 cable, UPCB-02

  • Data Acquisition software, SW-U811-WIN

  • EXCEL data Acquisition software, SW-E802

  • AC to DC 9V adapter



Circuit

Custom one-chip of microprocessor LSI circuit.

Display LCD size : 82 mm x 61 mm  with green backlight.

Channels

12 channels :
T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 and T12.

Sensor Type Resolution

Type K thermocouple probe.
Type J/T/E/R/S thermocouple probe. 0.1
°C/1°C, 0.1°F/1 °F.

Datalogger Sampling Time Setting Range

Auto

1 second to 3600 seconds
@ Sampling time can set to 1 second,

but memory data may loss.

Manual

Push the data logger button once will save data one time. @ Set the sampling time to

0 second.

Memory Card

SD memory card. 1 GB to 16 GB.

Advanced Settings

  • Set clock time ( Year/Month/Date, Hour/Minute/ Second )

  • Decimal point of SD card setting

  • Auto power OFF management

  • Set beep Sound ON/OFF

  • Set temperature unit to °C or °F

  • Set sampling time

  • SD memory card Format

Temperature Compensation

Automatic temp. compensation for the type K/J/T/E/R/S thermometer.

Linear Compensation

Linear Compensation for the full range.

Offset Adjustment

To adjust the zero temperature deviation value.

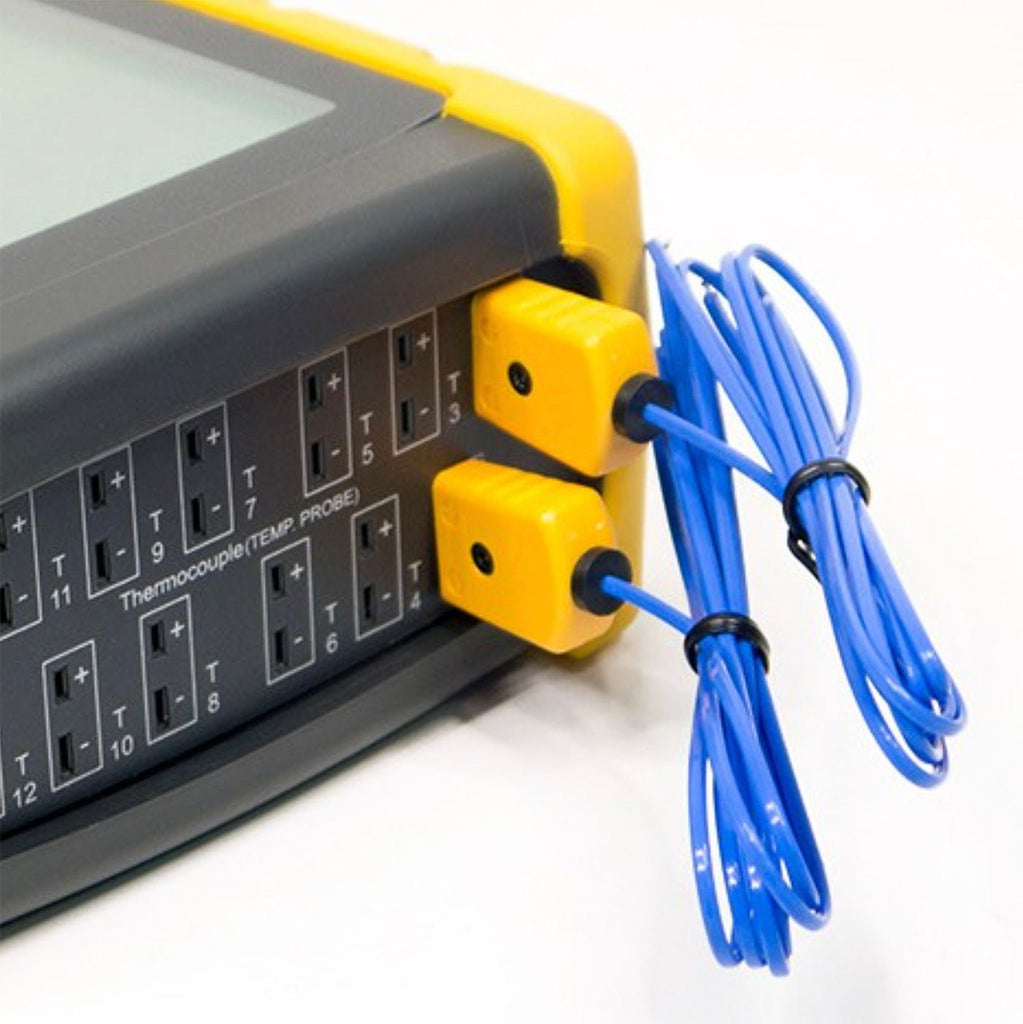

Probe Input Socket

2 pin thermocouple socket.

Over Indication

Show " - - - - ".

Data Hold

Freeze the display reading.

Memory Recall

Maximum & Minimum value.

Sampling Time of Display

Approx. 1 second.

Data Output

RS 232/USB PC computer interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.



Electrical Specifications (23± 5 °C)

Sensor Type

Resolution

Range

Accuracy

Type K

0.1 °C

-50.1 to -100.0 °C

± (0.4%+1°C)

-50.0 to 999.9 °C

± (0.4%+0.5°C)

1°C

1000 to 1300 °C

± (0.4%+1°C)

0.1 °F

-58.1 to -148.0 °F

± (0.4%+1.8°F)

-58.0 to 999.9 °F

± (0.4%+1°F)

1°F

1000 to 2372 °F

± (0.4%+2°F)

Type J

0.1 °C

-50.1 to -100.0 °C

± (0.4%+1°C)

-50.0 to 999.9 °C

± (0.4%+0.5°C)

1°C

1000 to 1150 °C

± (0.4%+1°C)

0.1 °F

-58.1 to -148.0 °F

± (0.4%+1.8°F)

-58.0 to 999.9 °F

± (0.4%+1°F)

1°F

1000 to 2102 °F

± (0.4%+2°F)

Type T

0.1 °C

-50.1 to -100.0 °C

± (0.4%+1°C)

-50.0 to 400.0 °C

± (0.4%+0.5°C)

0.1 °F

-58.1 to -148.0 °F

± (0.4%+1.8°F)

-58.0 to 752.0 °F

± (0.4%+1°F)

Type E

0.1 °C

-50.1 to -100.0 °C

± (0.4%+1°C)

-50.0 to 900.0 °C

± (0.4%+0.5°C)

0.1 °F

-58.1 to -148.0 °F

± (0.4%+1.8°F)

-58.0 to 999.9 °F

± (0.4%+1°F)

1°F

1000 to 1652 °F

± (0.4%+2°F)

Type R

1°C

0 to 600 °C

± (0.4%+0.5°C)

601 to 1700 °C

± (0.4%+1°C)

1°F

32 to 1112 °F

± (0.4%+1°F)

1113 to 3092 °F

± (0.4%+2°F)

Type S

1°C

0 to 600 °C

± (0.4%+0.5°C)

601 to 1500 °C

± (0.4%+1°C)

1°F

32 to 1112 °F

± (0.4%+1°F)

1113 to 2732 °F

± (0.4%+2°F)

Remark :

  1. Accuracy value is specified for the meter only.

  2. Accuracy is tested under the meter's environment temperature within 23 ± 5°C.

  3. Linearity Correction: Memorize the thermocouple's curve into the intelligent CPU circuit
