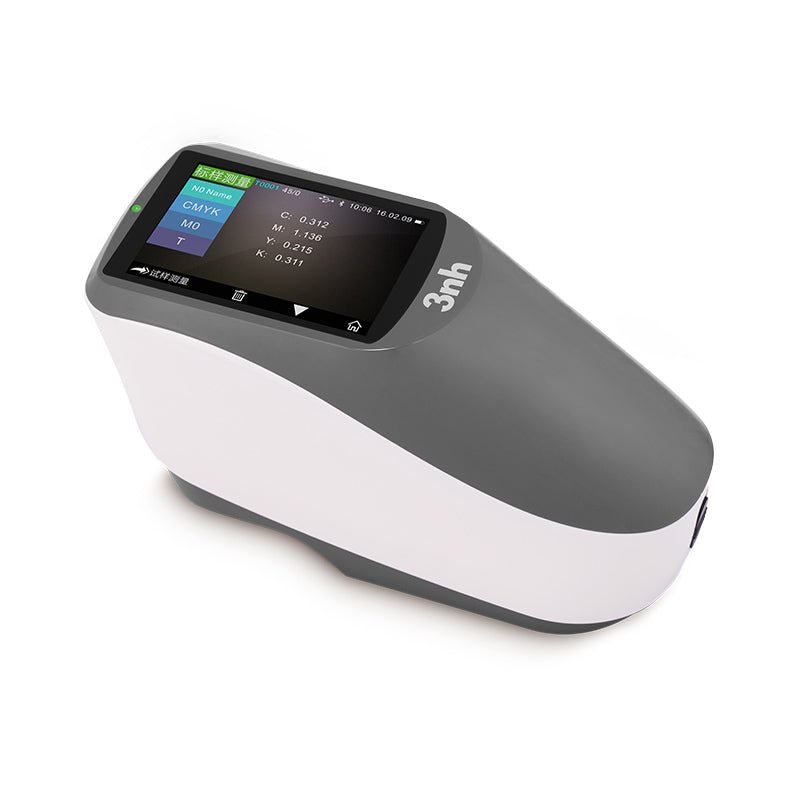

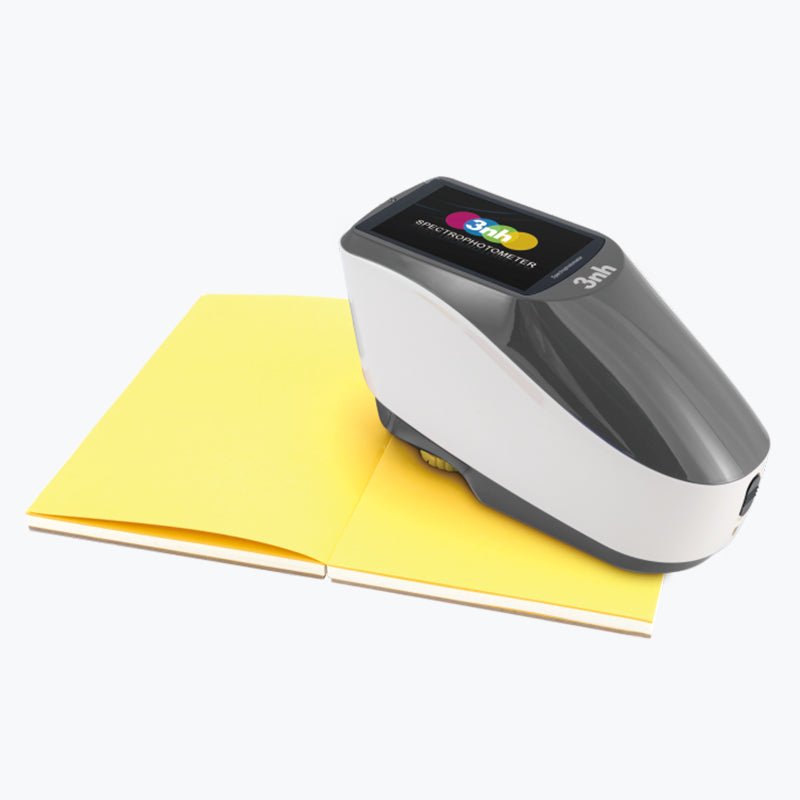

YD5010 Portable Spectrodensitometer
YD5010 Portable Spectrodensitometer


YD5010 Portable Spectrodensitometer

Unleash the power of precise color and density measurement with the 3NH YD5010 Spectrodensitometer.

FREE SHIPPINGCrafted with innovation and precision in mind, this spectrodensitometer is an essential tool for professionals in the printing, packaging, and graphic arts industries. Elevate your color management processes with the accuracy and efficiency that the YD5010 brings to every project.

  • Spectral Analysis: The YD5010 employs advanced spectral analysis technology, ensuring meticulous measurement of color and density. This makes it an indispensable asset for industries where color consistency and accuracy are paramount, such as printing and packaging.

  • Density Measurement: With its exceptional density measurement capabilities, this spectrodensitometer allows users to assess ink density with unparalleled accuracy. Achieve optimal print quality and consistency by fine-tuning ink levels based on precise density readings.

  • User-Friendly Interface: The YD5010 features an intuitive and user-friendly interface, making it easy for professionals at all levels to navigate and operate. The clear display provides instant access to critical data, enabling efficient decision-making during color correction and quality control processes.

  • Versatile Applications: From CMYK color matching to dot gain analysis, the YD5010 caters to a wide range of applications. Its versatility makes it an essential tool for those who demand excellence in color reproduction and consistency across various printing processes.

  • Portable Design: Compact and portable, the YD5010 can be conveniently used in different locations. Whether on the production floor or in the field, its portable design ensures that professionals can bring precision color and density measurement wherever it's needed.

Precision Redefined:
The 3NH YD5010 Spectrodensitometer isn't just a tool; it's a precision instrument that redefines color and density measurement standards. With its state-of-the-art technology and user-friendly design, this spectrodensitometer empowers professionals to achieve unparalleled accuracy and consistency in their color management workflows. Elevate your printing and color control processes with the unmatched capabilities of the 3NH YD5010.

Note: This item ships direct from the manufacturer. Please allow an additional 3-5 business days for order processing and shipment on all 3nh instruments.

Model YD5010
Measurement Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control; especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Measurement Conditions Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Source A)
M1 (CIE Light Source D50)
M2 (Excluding UV Light Source)
M3 (M2+Polarized Light Filter)
Density Standards ISO Status A, E, I, T
Density index Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level
Measurement aperture Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces CIE LAB, XYZ, Yxy, LCh
Color Difference Formula ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index /
Observer Angle 2°/10°
Illuminants A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time About 1.5s
Repeatability Density: Within 0.01 D
  Chromaticity value:within ΔE*ab 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Except M3
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode Single Measurement, Average Measurement (2-99)
Size(L*W*H) 782x3x4.1 inches (184x77x105mm)
Weight 21 oz. (600g)
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory 10,000 pcs
Simplified Chinese, English, Traditional Chinese
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory Micro Printer
Notes: The specifications are subject to change without notice.
