Manometer SD Card Loggers

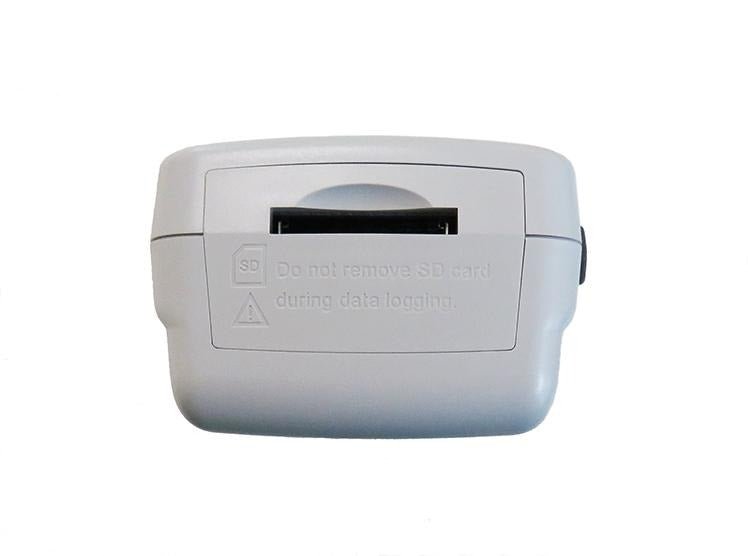

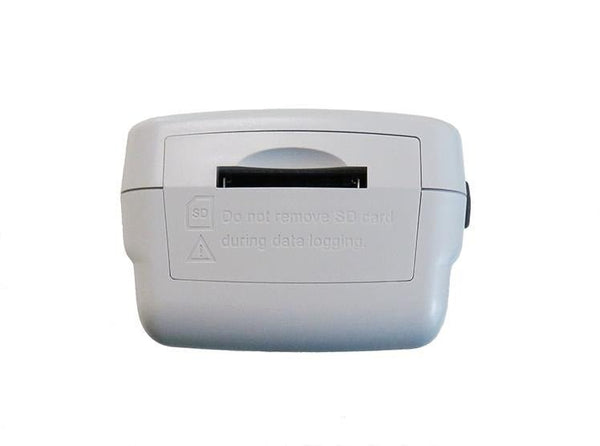

Reads gauge and differential pressure in non-corrosive and non-ionized air and gas, (not for use with liquids). Records data along with date and time onto standard SD memory cards (like a digital camera). When full, simply exchange SD cards for unlimited data storage. The removable SD card is easy to transport and insert into a computer’s memory card slot or SD card reader. Uploads preformatted data to Excel, without the need for additional software and cables. Additional SD cards are readily available in a variety of memory sizes.

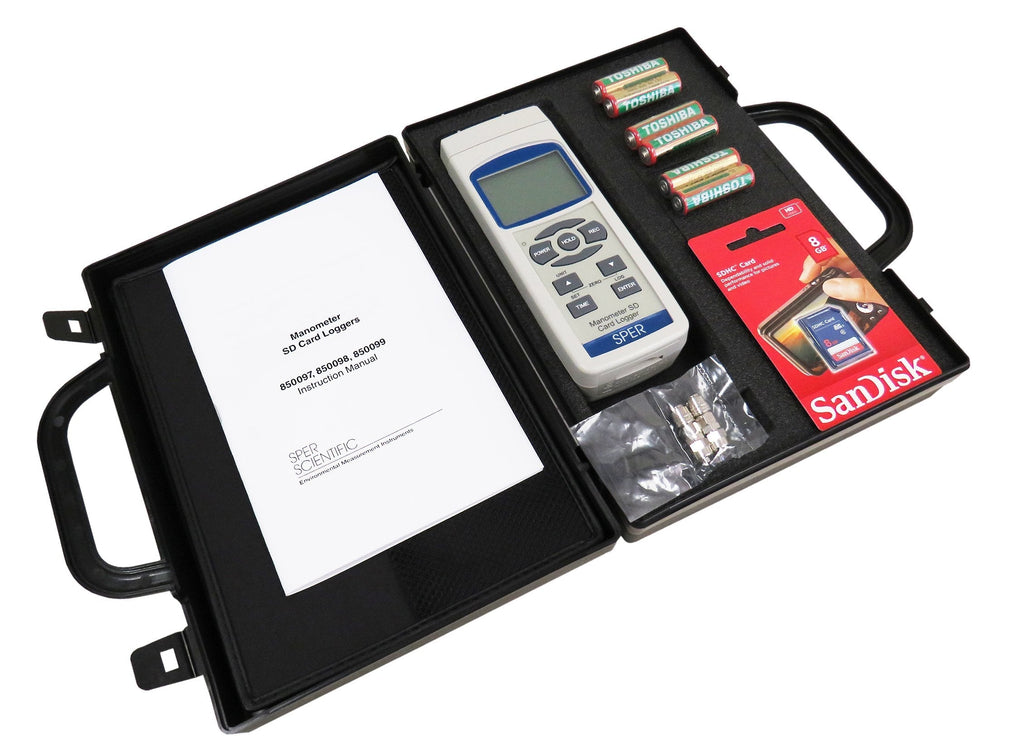

Features 10 units of measure, push-button zero offset, min/max, auto power off, low battery indicator and hold function. This well-made unit is accurate to +/-2% full scale and includes a fold-out easel back and a large easy-to-read backlit LCD. Comes ready to use with a carrying case, 6 AA batteries, tubing and pipe attachment lugs, instruction manual, and an SD card. Uses optional USB Power Cable 840058, or AC Adapter 840097.
Dimensions: 7" × 2¾" × 1¾" (178 × 70 × 44 mm)
Weight: 1 lb. (0.45 kg)
N.I.S.T. traceable Certificate of Calibration available at additional cost (Select option above).
|Range ±||Res.||Range ±||Res.||Range ±||Res.|
|mm of Hg:||150||0.1||1500||1||5250||5|
|Max Pressure:||3 PSI||29 PSI||101 PSI|
