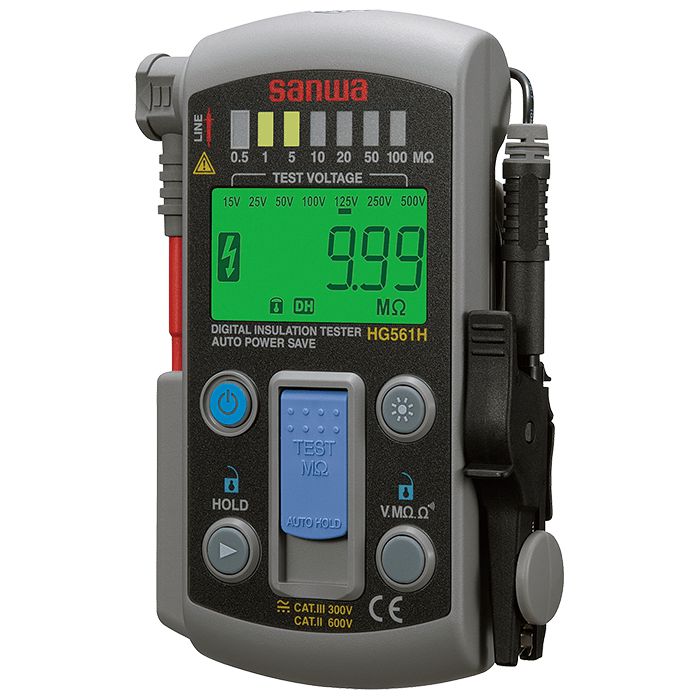

The Sanwa HG561H Insulation Resistance Tester is a compact and highly capable device that offers a wide range of features for insulation resistance measurements.

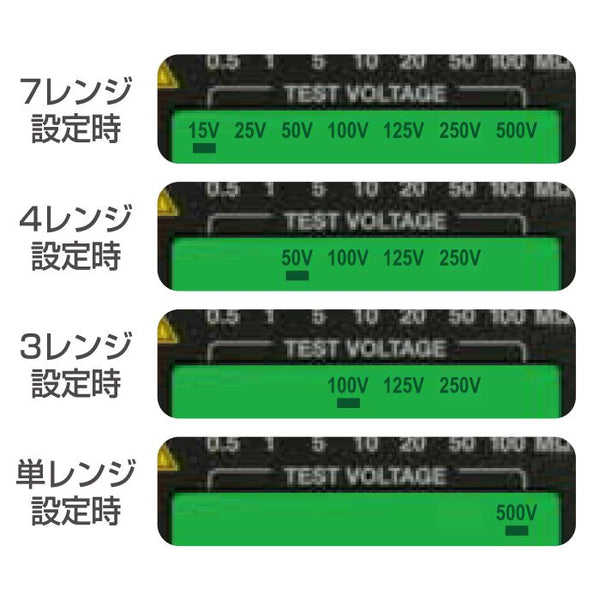

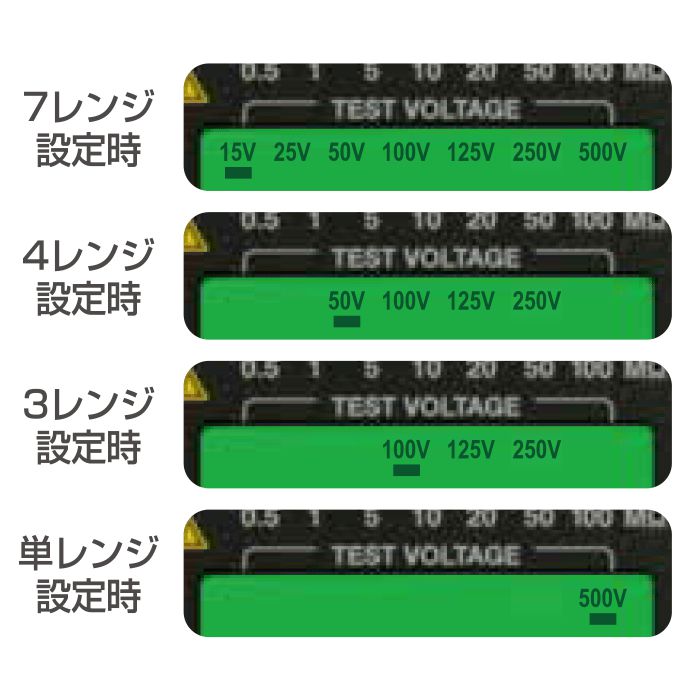

Despite its pocket-sized design, this tester provides a selection of 7 test voltages (15/25/50/100/125/250/500 V) that can be easily chosen and fixed, preventing any inadvertent selection of the higher 500 V option.

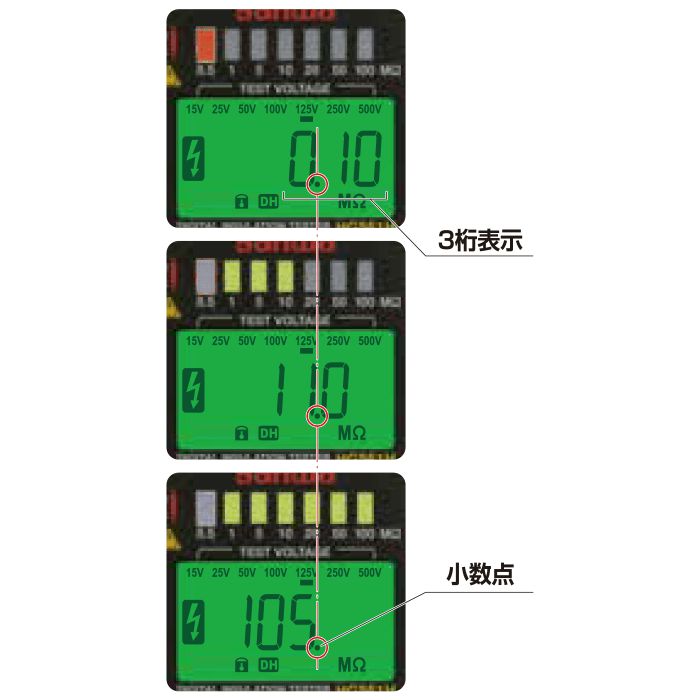

The LCD display is designed to be user-friendly with a fixed decimal point, enhancing readability. The meter is equipped with a handy LED light to illuminate your workspace, while the backlit LCD ensures visibility in dimly lit environments.

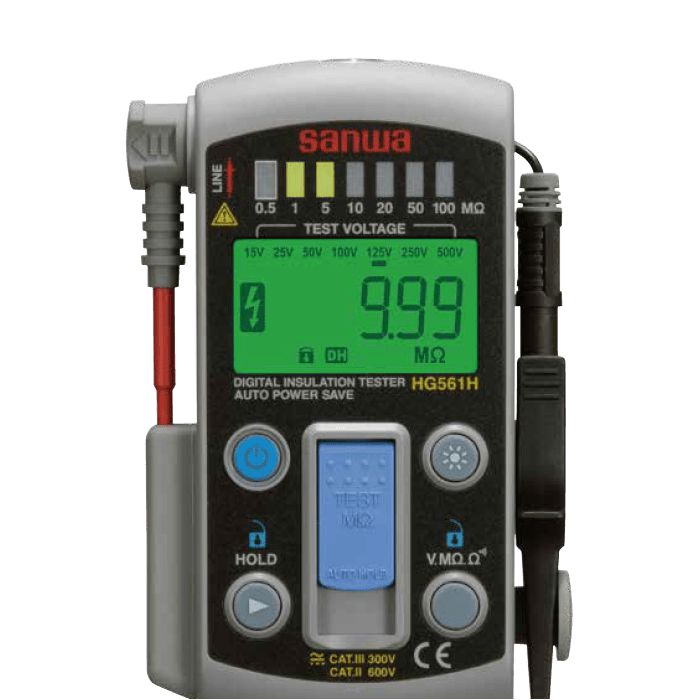

The HG561H boasts an all-in-one body design with an integrated probe, allowing users to conveniently view both the probe tip and the display simultaneously. It includes a specialized probe that enables measurements through a hole in a circuit breaker cover, expanding its versatility for various applications. Additional safety features include an auto power-off function that conserves battery life by automatically shutting down after approximately 10 minutes of inactivity, as well as an auto-discharge feature.

When using the MΩ function, the HG561H automatically detects if the probe is applied to a live wire (over 30 V) before pressing the test button. In such cases, the instrument displays the voltage without generating any test voltage, ensuring safety during measurements. With CAT. III 300V, and CAT. II 600V ratings, the HG561H meets the highest safety standards, making it suitable for a wide range of electrical applications. Whether you're a professional technician or a DIY enthusiast, the Sanwa HG561H Insulation Resistance Tester offers reliable measurements, essential safety features, and convenience in a compact package.

  • Test voltage selection with 7 modes
  • LED level meter shows MΩ
  • East-to-read LCD with fixed decimal point
  • Automatic data hold function
  • Has a backlight that is convenient for measuring in a dark place and an LED light that illuminates your work site

Includes meter, soft carrying case, test leads, clip adapter, factory calibration certificate, (4) AAA batteries and instructions.

Specifications

Function Measuring Range Accuracy Resolution
15/25/50V 9.99M/21.0MΩ
100/125/250/500V
9.99M/99.9M/110MΩ
±(2%+5) 0.1MΩ
Rated voltage 15/25/50/100/125/250/500V
ACV/DCV 600V(Automatic measurement for AC/DC) ±(1.6%+7) 0.1V
Ω 999.9/99.99k/999.9kΩ ±(1.5%+7) 0.1Ω
Insulation resistance (Level meter) 15/25/50V 5 Levels (LED light up/blinking)
100/125/250/500V 7 Levels (LED light up/blinking)
Continuity ≦ approx.30Ω: Beep sounds
Rated current 1.0~1.2mA
Battery LR03(AAA alkaline battery)×4
Size/Mass H139×W91×D29mm/Appox. 230g
Earth lead(Black) Length Approx. 1.8m
Safety standard IEC61010 CAT.Ⅲ 300V CAT.Ⅱ 600V
