This shock resistant analog multimeter provides 20 measurement functions including high voltage DC, battery check and (optional) temperature measurement.

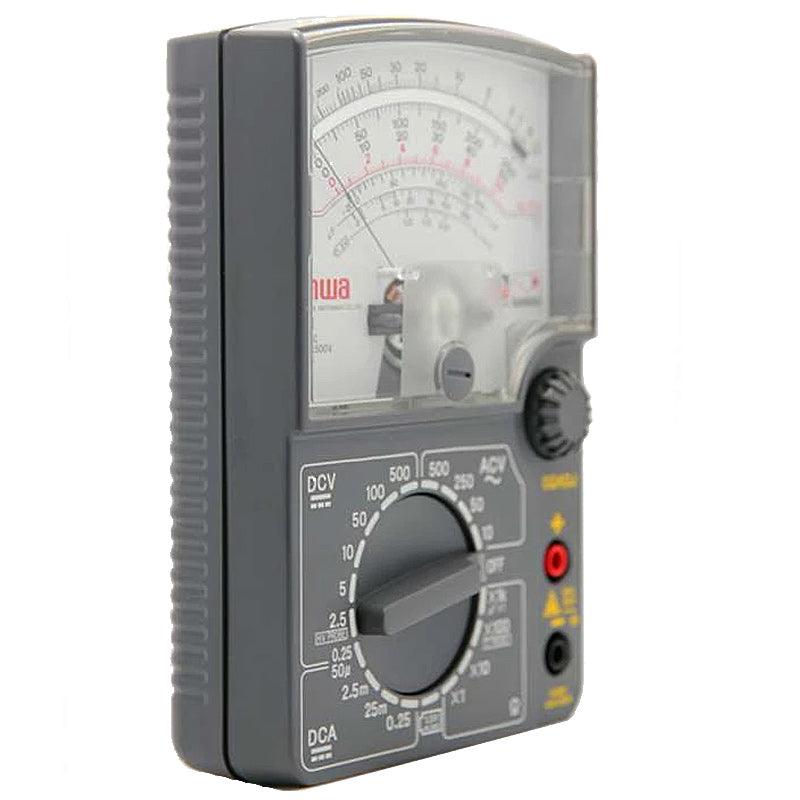

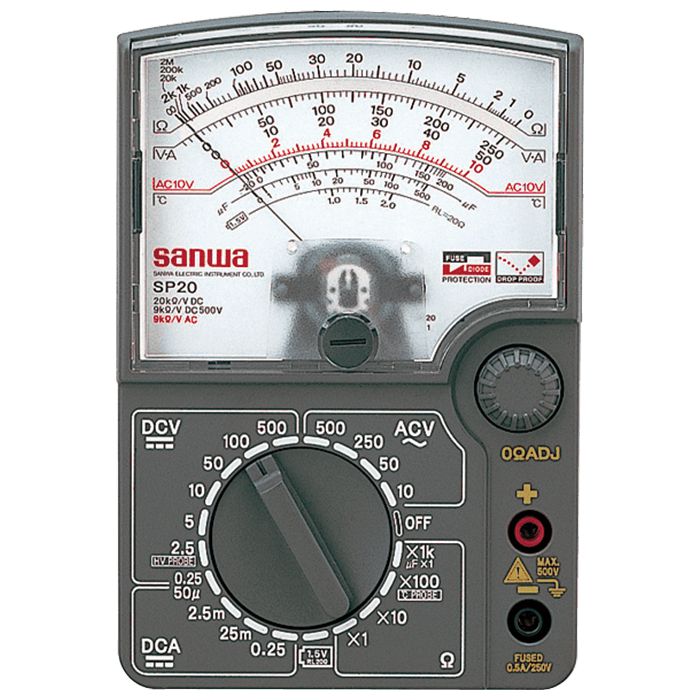

The Sanwa SP20 is a portable analog multi-tester with 20 measurement functions.
This meter is specially designed for low power circuits and home electric appliance testing. This meter is an Internal magnet type, taut band meter with a full-scale accuracy of 3%. The device is capable of measuring ACV and DCV along with high voltage DC of up to 25kV (using optional HV-10 probe). The device is also capable of measuring resistances of up to 2MΩ and capacitance with a full-scale value of 500uF.
The SP20 has protective covering which provides protection against drop shocks. The circuit is protected by a fuse rated at (250V/0.5A) with a blowout capacity of 500 Amperes.
Includes meter, one set of test leads and instruction manual.
- Drop shock proof taut-band meter
- 20ch measurement ranges
- Capacitance measurement 500μF

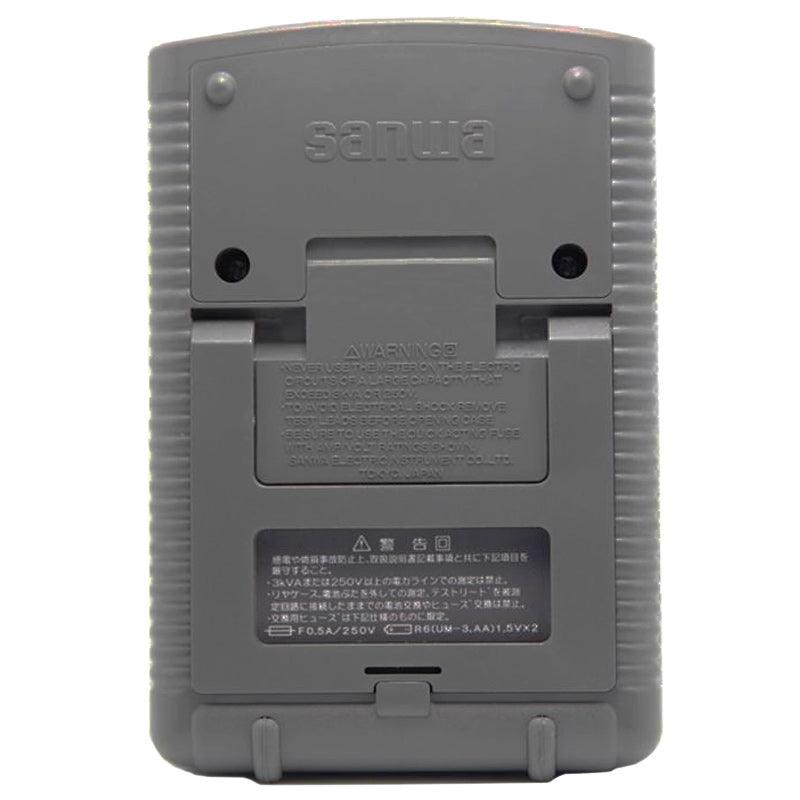

- Tilt stand
- DC high voltage and temperature measurement (with optional accessories)
Specifications
| Function |
Measuring Range |
Tolerance |
| DCV |
0.25/2.5/5/10/50/100（20kΩ/V）/500V（9kΩ/V) |
±3% of full scale |
| ACV |
10/50/250/500V（9kΩ/V) |
±3% of full scale |
| DCA |
50μ/2.5m/25m/0.25A |
±3% of full scale |
| Resistance |
2k/20k/200k/2MΩ |
±3% of arc |
| Capacitance |
500μF |
Approximate value |
| DC high voltage |
DC25kV (Using separately available probe HV-10) |
±20% with probe |
| Temperature |
-20 to + 200℃ (Using separately available probe T-THP) |
±3% (Using T-THP) |
| Battery check |
1.5V (1.0～2.0V) |
Approximate value |
| Frequency characteristic |
AC10V range 40Hz to 100kHz: frequency response within ±3% |
| Battery |
R6P(AA battery)1.5Vx2 |
| Built-in fuse |
F0305 Φ6.3x30mm 0.5A/250V 300A Glass fuse |
| Size/Mass |
H144×W99×D41mm/Approx. 270g |
