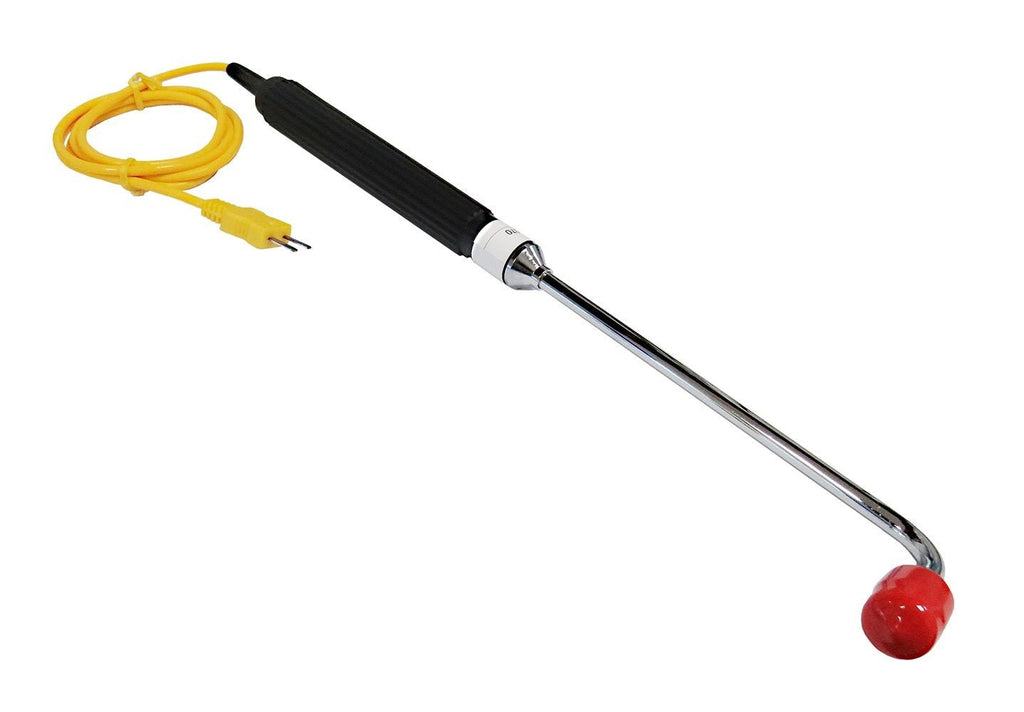

Type K Surface Thermometer Probe
The primary difference between Type J and Type K thermocouples is the measuring range, and the sensitivity. Type K is the most common general-purpose thermocouple with a sensitivity of approximately 41 µV/°C.
A wide variety of probes are available in its −50°C to +900°C / -58°F to +1652°F range. Type K wire color standard is yellow (+) and red (-). Type J has a more restricted range of −50 to +400°C, but higher sensitivity of about 50 µV/°C. Type J wire color standard is white (+) and red (-).
|Surface Thermometer Probe|
|K||Hard to access areas||-30 to 480ºC
-22 to 896ºF
|Handle Length: 5.5" (140 mm)
Probe Length: 8" (203 mm)
Probe Diam:13 mm
Cord Length: 38"
